Tuya Central Control Panel with Knob Button
Luxury smart home central control panel with Zigbee Gateway and seamless Tuya integration. Conveniently control home appliances and smart devices through 8-inch touch screen. Knob button enables you to quickly and precisely adjust volume, swich songs, adjust light's brightness, temperature of room. The knob features an OLED display which can show different content.
Smart Home Hub with Music Amplifier
All-in-one smart home and multimedia system solution, can be easily installed inside a 2-gang electrical box.

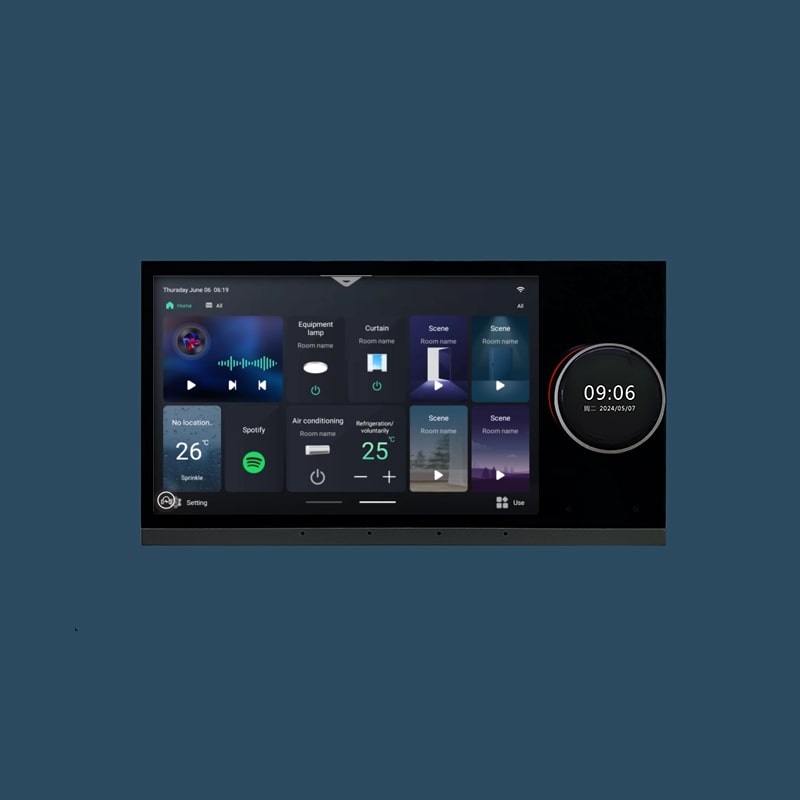

Knob Button Features OLED Display
High-end luxury control panel with knob featuring an OLED display, offering you enhanced user-experience that brings you efficiency, comfort, convenience. The interactive knob can not only display different information, but also supporting light stepless dimming, temperature adustment, music volume adjustment...etc operations.

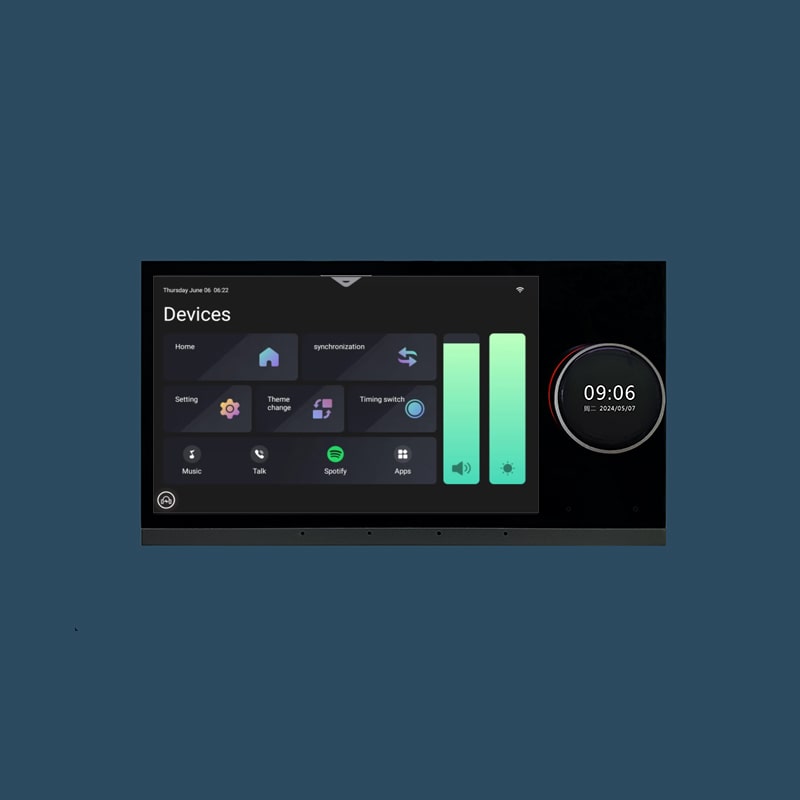

4CH Audio Amplifier
It's not only a smart home hub, but also a music player with 120W audio amplifer. The amplifier can connect up to 4 speakers, it supports dual audio zones. Each audio zones can be controlled separately, you're able to play different music in each zones.

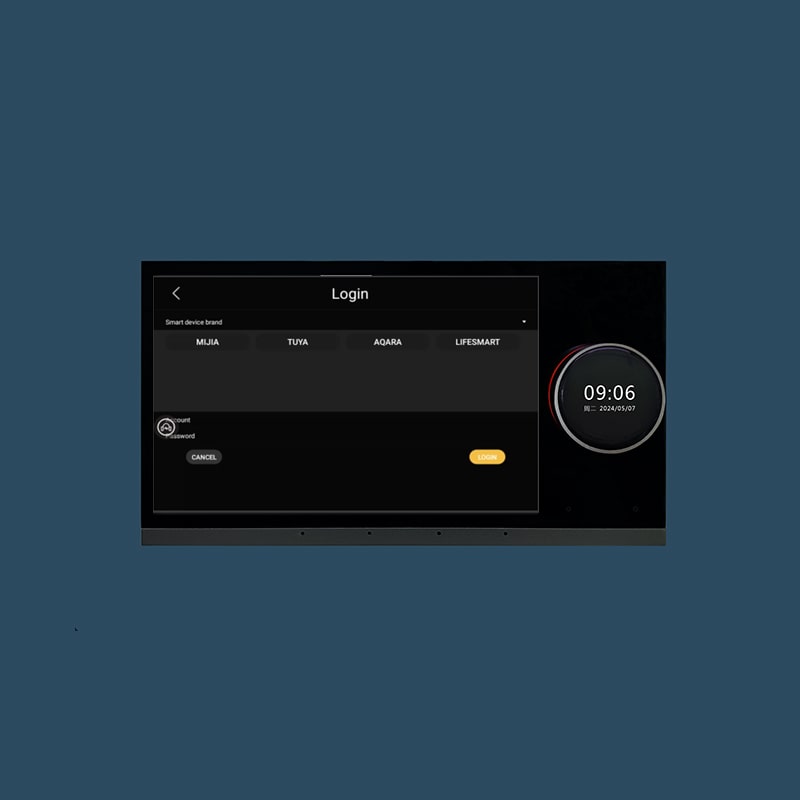

Tuya Zigbee 3.0 Gateway
The central panel has Tuya Zigbee gateway built-in, hence it can connect 100+ smart devices such as security sensors, light switches, smart sockets/plugs, thermostats...etc various kinds of wireless devices based on Zigbee wireless technology.

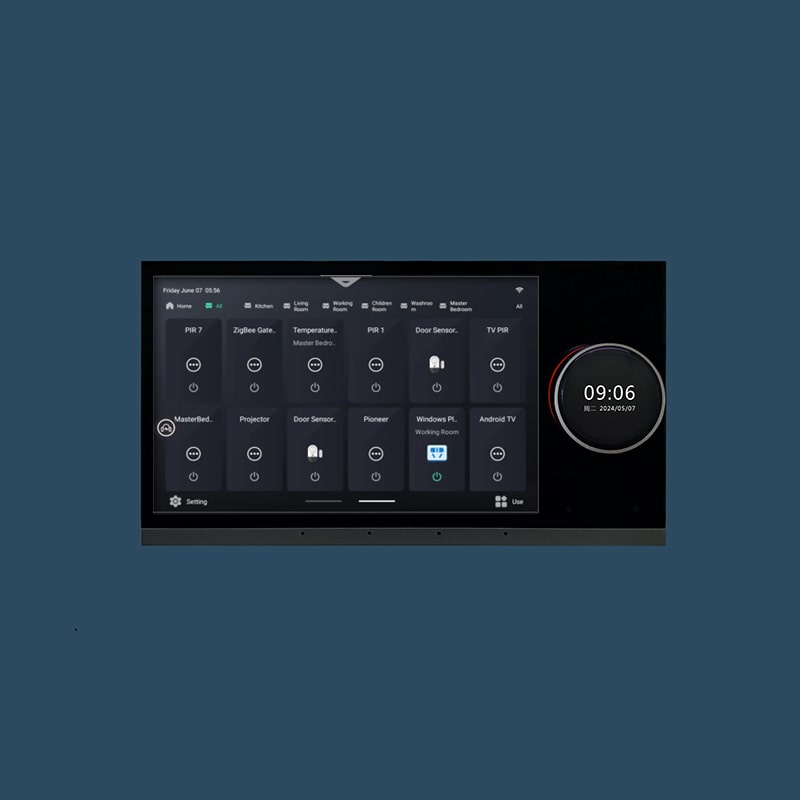

Alexa/Google Assistant Voice Control
The Android smart control panel utilizes 4 microphones to pickup your voice. Based on Android 8.1 OS, it's an Android tablet that can install different apps. You're able to install your favorite voice assistant apps such as Alexa, Google Assistant. Moreover, it employs 4 microphones (microphone array) which can pickup voice commands within 10 meters.

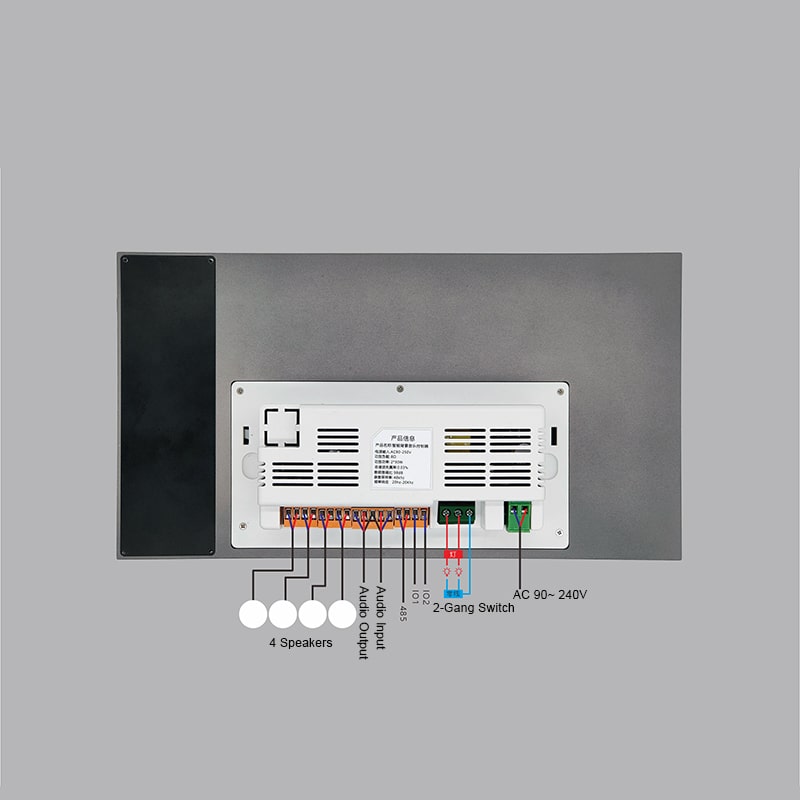

2-Gang Light Switch
The control panel includes 2-gang light switch that can wire two lights, it turns your existing lights to be smart, and you're able to control them through the panel. Furthermore, it includes rich peripheral to provide good scalability. In addition to connecting up to 4 speakers, the hub includes AUX input and output to work with your conventional audio equipments (such as multimedia dock, CD/DVD players).
Remotely Control via Tuya Smart
This control panel also can be added to your Tuya Smart app. Once it's added to your account, you're able to control it through smartphone anywhere anytime. You're able to switch it on/off, play music, adjust volume...etc.
Product Specification
- Model: TUYA-D8
- Power input: AC90~240V
- Display: 8-inch IPS HD screen
- Display resolution: 1280*800
- OS: Android 8.1
- CPU: Quad-Core ARM
- Hardware: 2GB RAM
- Internal Storage: 16GB ROM
- Audio Output: 4*30W
- Audio impedance: 8Ohm
- Audio Input: 1CH Aux
- Audio output: 1CH Aux
- Control interface: RS485
- Wi-Fi: IEEE802.11 b/g/n 2.4G
- Bluetooth: 5.0, 10 meters
- Zigbee: Zigbee 3.0 gateway
- Zigbee capability: 100+ sub devices
- External storage: microSD card slot (max. 256GB)
- IoT platforms: Tuya, Mijia, Aqara, LifeSmart
- Color: Grey/Champagne
- Tablet dimension: 235*130mm
- Gang box dimension: 172*80*60mm
Tuya Smart Control Panel FAQ
How to integrate this control panel to Home Assistant?
How to install Tuya smart control panel?
Install control panel
